LRO¶
A 40 Å cubic silicon dioxide supercell (~4866 atoms), long-range order.
silicon_dioxide_lro_generate.py reproduces this case.
Orientation refinement¶
MACE+wall relaxation¶

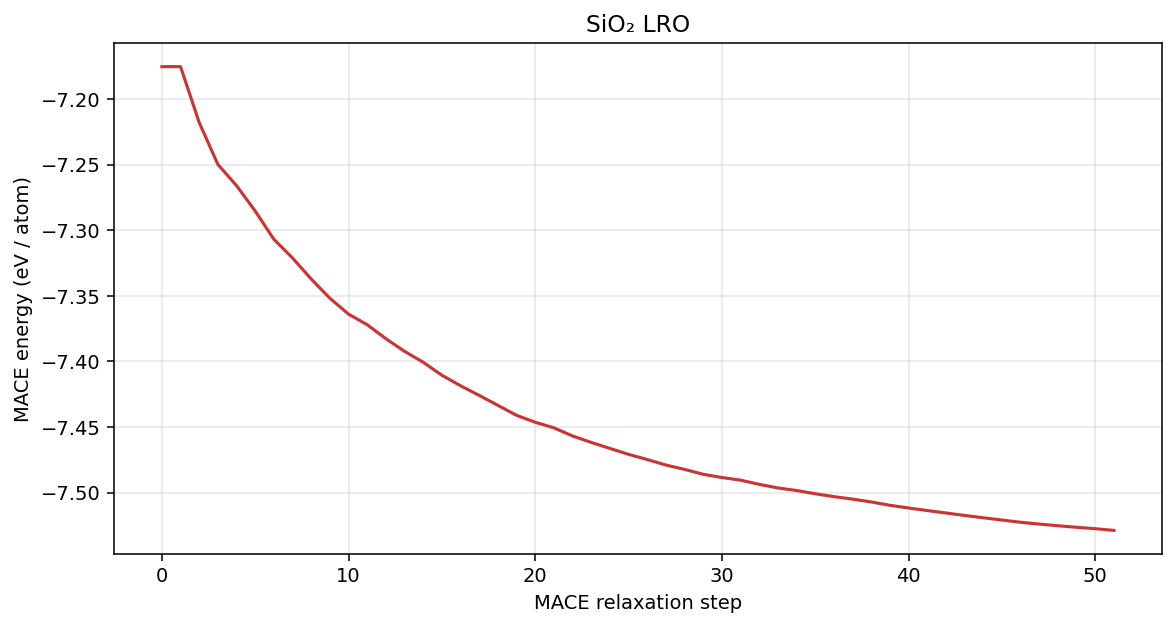

Energy¶
stage |
E (eV/atom) |
|---|---|
after orientation refinement |
-6.977 |
after cleanup |
-7.175 |
after MACE |
-7.530 |

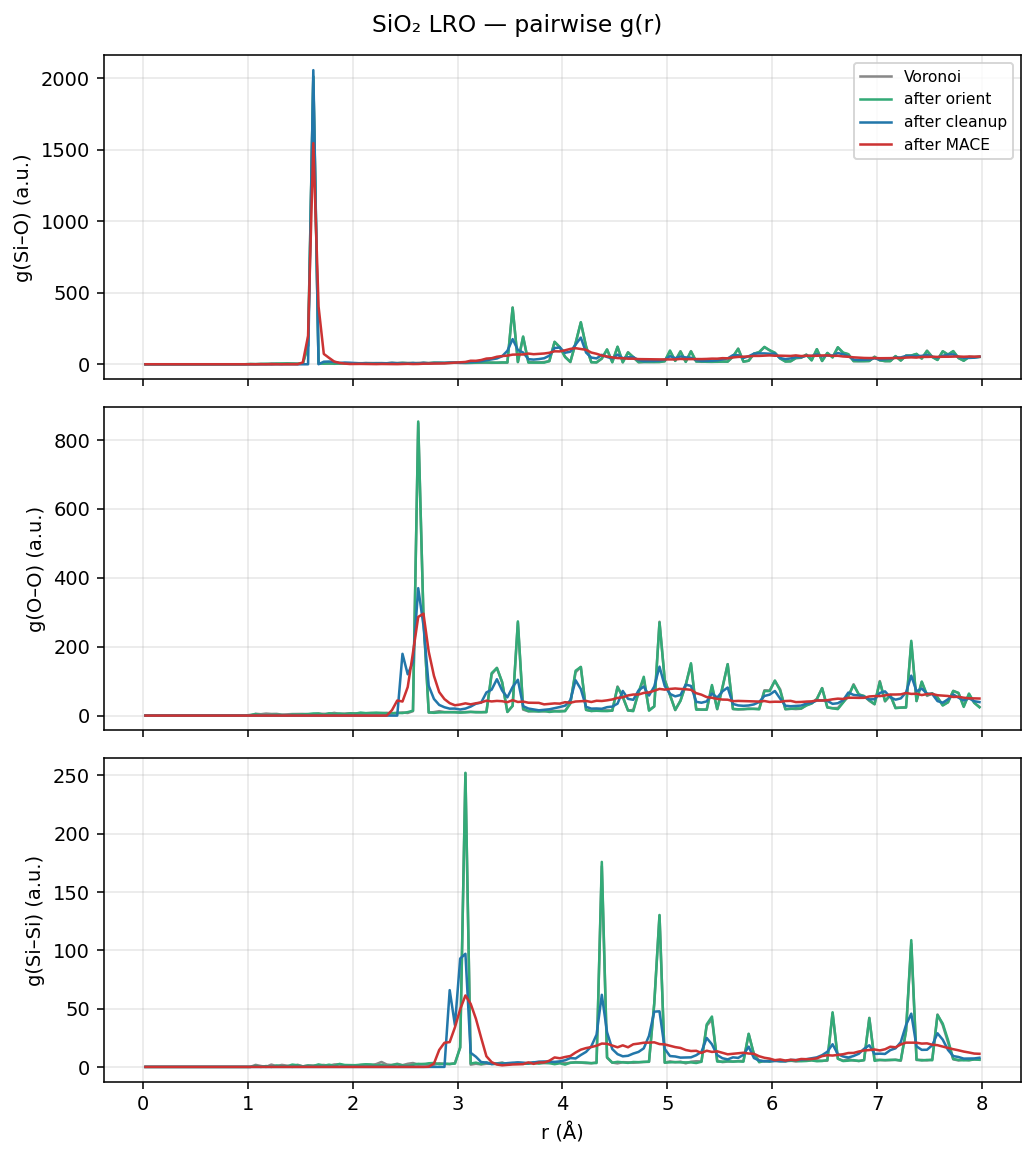

g₃ distributions¶
After cleanup
After MACE

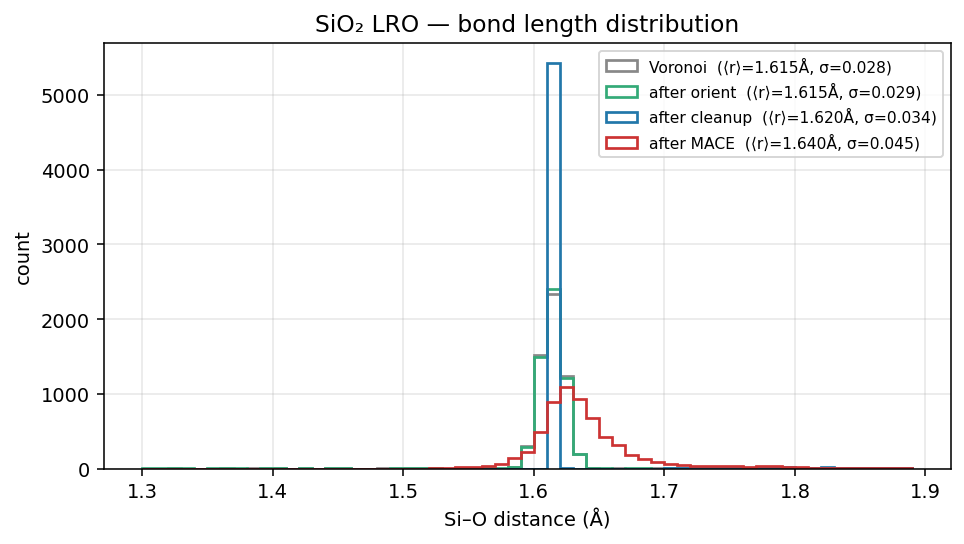

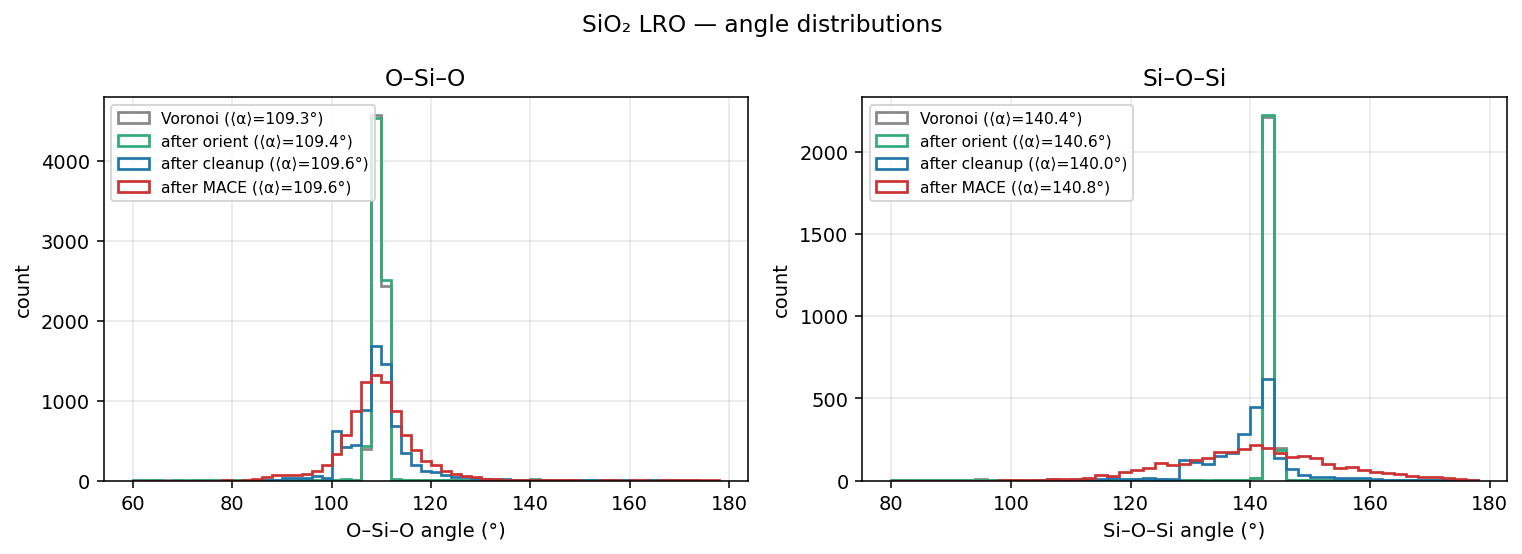

Bond length and angle distributions¶
