MRO¶
A 40 Å cubic strontium titanate supercell (~5130 atoms), medium-range order.
strontium_titanate_mro_generate.py reproduces this case.
Orientation refinement¶
MACE+wall relaxation¶

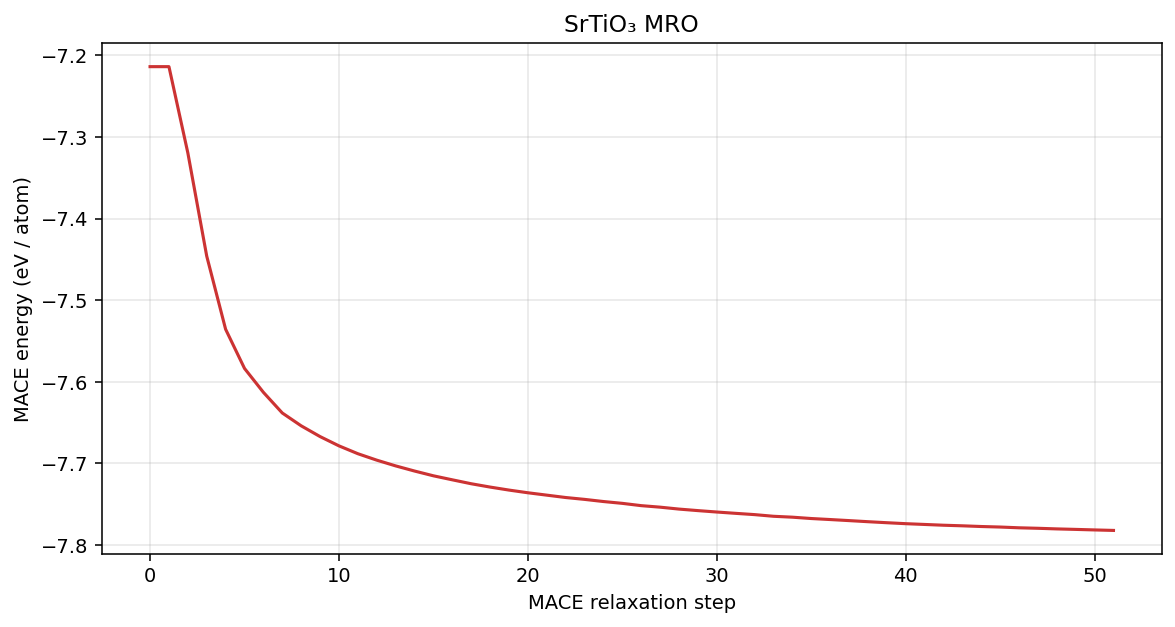

Energy¶
stage |
E (eV/atom) |
|---|---|
after orientation refinement |
-6.956 |
after cleanup |
-7.214 |
after MACE |
-7.782 |

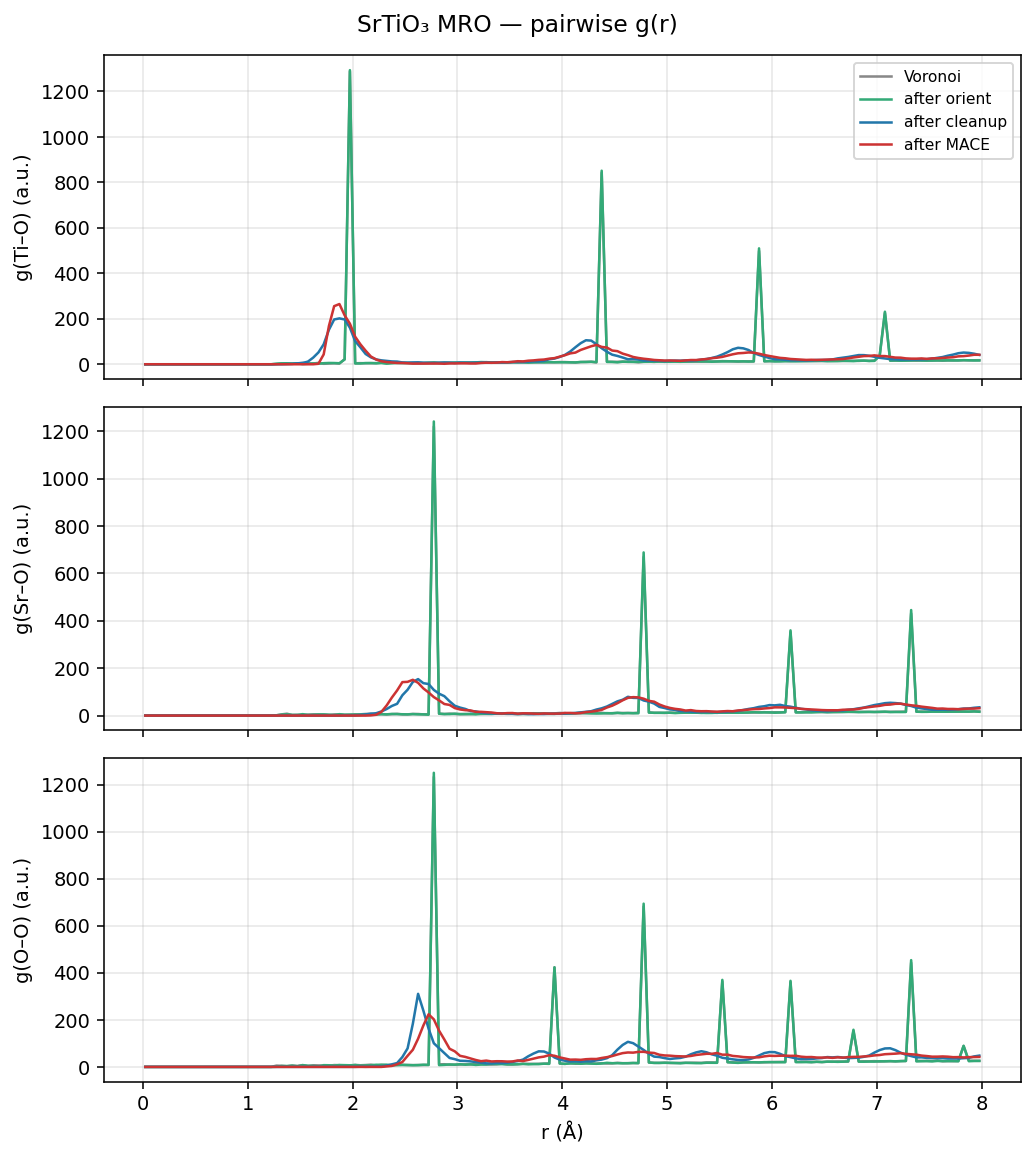

g₃ distributions¶
After cleanup
After MACE

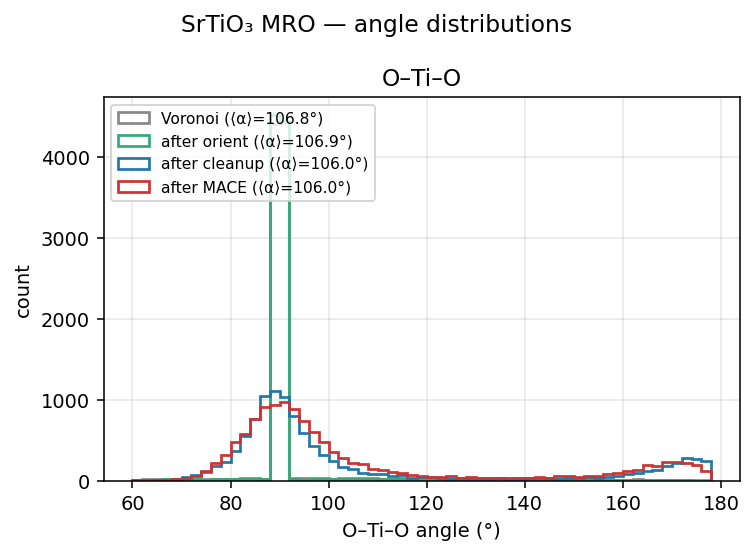

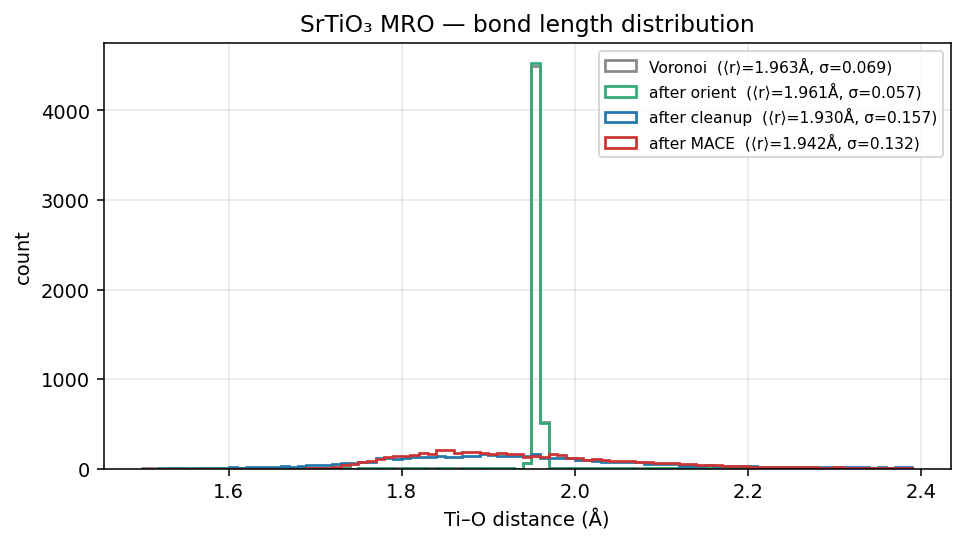

Bond length and angle distributions¶
